Can WFP-UV207 print uneven cement parking ground?

Yes, adaptive print gap system supports ground unevenness within 10mm, matched with dedicated ground track to keep machine stable without ink missing.

Best-Selling WFP-UV207 UV Wall and Floor All-in-One Printer

Name: uv207
Brand: TXC Printer

TXC WFP-UV207 Wall & Floor Dual UV Printer | Vertical Horizontal All-in-One Printing Machine

TXC WFP-UV207 Wall & Floor 3-in-1 UV Printer

Dual-purpose vertical & horizontal UV printing equipment that supports wall, floor, and flat panel printing modes. Lightweight modular aluminum frame with Epson i3200 printhead and 5D multi-layer emboss texture, designed for parking space floors, outdoor grounds, and interior wall mural decoration businesses with ultra-high profit margins.

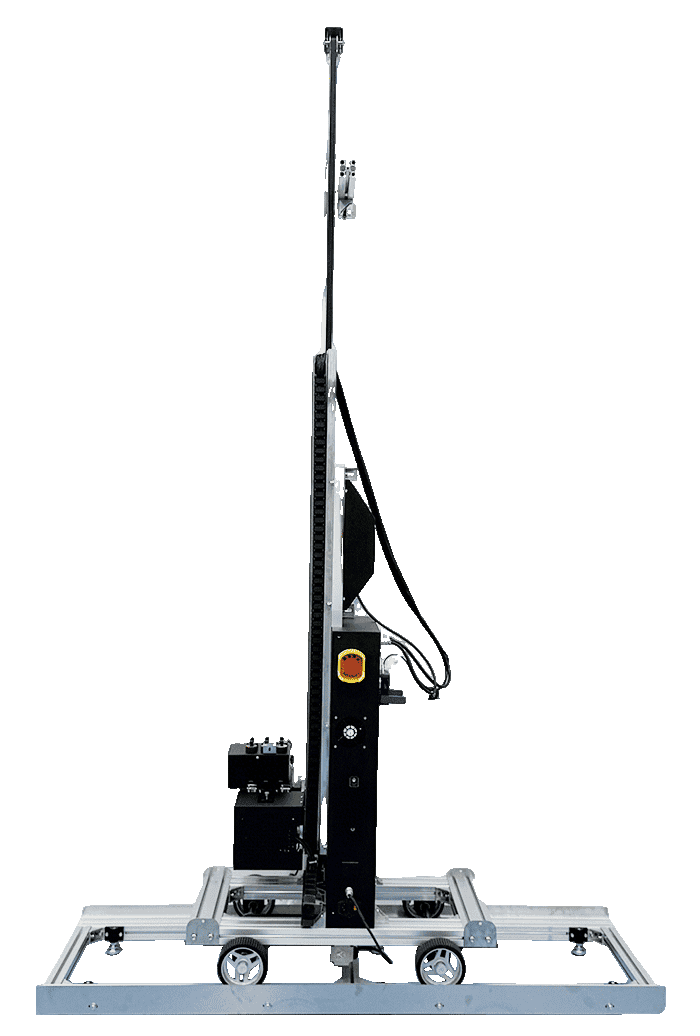

TXC WFP-UV207 vertical horizontal dual UV wall floor printer full unit display

Ultra-Stable Premium Aluminum Body

Quick Replaceable Ink Cartridges

Real-Time Intelligent Tracking System

High-Efficiency Pulley Transmission

3-In-1 Multi Printing Modes

Fast Modular Assembly Frame

Epson I3200 Industrial Print Head

CMYK+White UV Ink Support

Core Functional Structure

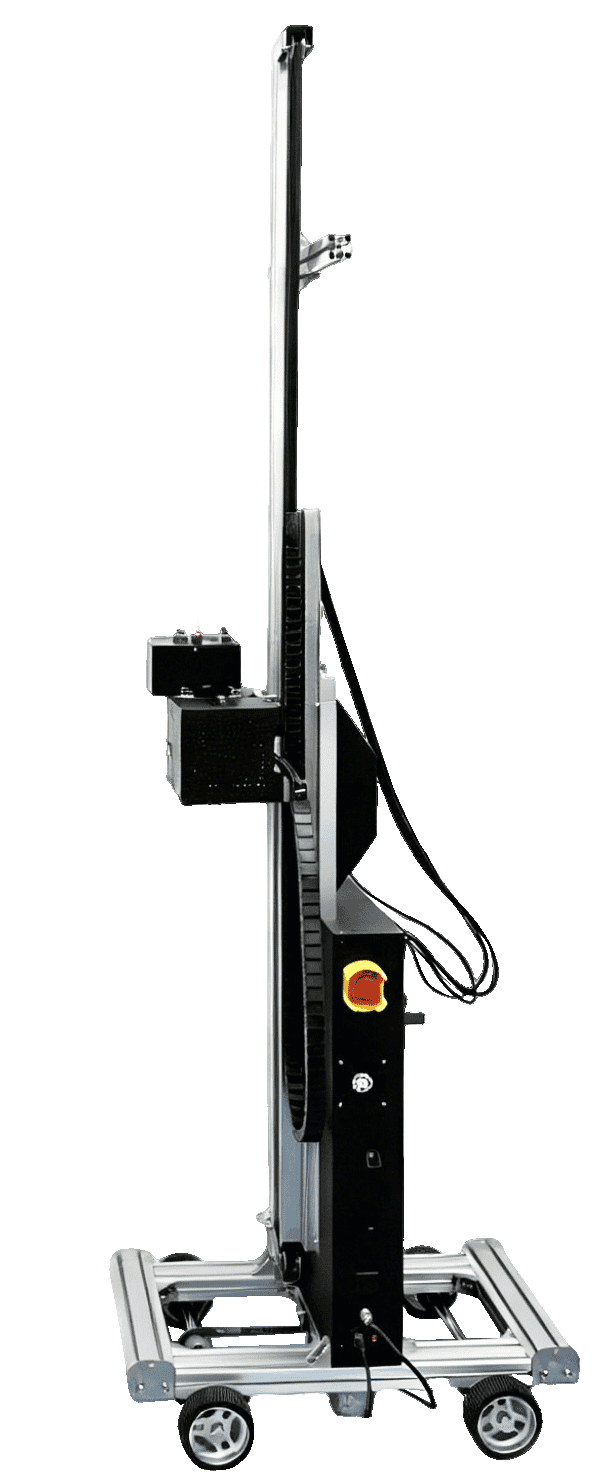

TXC WFP-UV207 wall floor printer internal structure & functional schematic

Low Ink Automatic Alarm

Auto Circulation Ink Pump

5D Emboss Relief Printing

Steel Reinforced Belt Drive

Expandable Modular Rails

AI Autonomous Printing System

Auto White Ink Agitator

Constant Temp Ink Heating

WiFi Remote Control Module

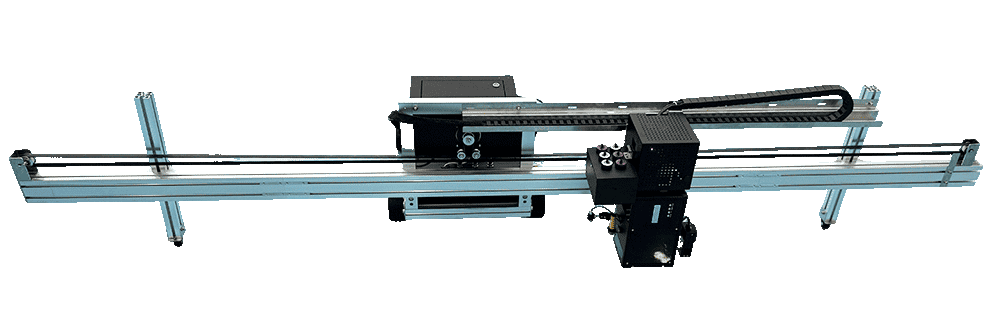

TXC WFP-UV207 portable wall floor printer complete assembly view

Vertical Horizontal Dual Print

Long-Duration Commercial Work

Lightweight Portable Frame

Universal Ground Guide Track

What Is WFP-UV207 Wall & Floor All-in-One UV Printer?

The TXC WFP-UV207 is a unique three-mode UV inkjet printer specially developed for ground + wall dual business. Unlike single vertical wall printers, it is equipped with universal ground guide rail and horizontal printing support, realizing parking lot floor, indoor ground, vertical wall, flat board integrated printing solution. Adopts single industrial Epson i3200 printhead, CMYK+white five-color UV ink, supports 1-8 layers white ink stacking to form 5D stereo relief effect. The whole machine adopts split aluminum alloy frame, one person can complete disassembly and transportation, suitable for small and medium decoration studios, parking lot custom painting factories, street graffiti studios, real estate marketing ground art projects, greatly expanding business scope and increasing customer order types.

Exclusive Competitive Advantages of WFP-UV207

3-in-1 Vertical & Horizontal Dual Modes

Exclusive ground track matching, switch wall / floor / flat printing freely, one machine covers two major business categories, no need to buy separate wall and floor equipment to save investment cost.

5D Multi-Layer Emboss Floor Texture

Support thick white ink stacking printing, floor patterns have obvious bump texture, anti-wear and anti-slip after UV curing, perfect for private parking space custom murals high-value orders.

Universal Detachable Ground Guide Rail

Special ground track accessories, smooth walking on cement, epoxy, tile floors, no scratching ground surface, track length can be spliced arbitrarily for long ground printing.

Quick Disassembly Lightweight Frame

Integrated split aluminum alloy structure allows a single person to carry and install it without lifting equipment. It is suitable for upstairs parking lots and narrow construction passages.

Replaceable Quick Ink Cartridge

Large capacity plug-and-play ink box requires no complicated refilling operation, reducing ink leakage risk and saving daily maintenance time for new operators.

All-Day Stable Continuous Printing

Equipped with white ink automatic stirring + constant temperature heating system, long-time floor batch printing without sediment clogging printhead, stable output of thousands of square meters.

Full Technical Specifications WFP-UV207

Printhead	Single Epson i3200 Industrial Printhead
Ink Configuration	CMYK + White Constant Temp UV Ink
Print Mode	Vertical Wall / Horizontal Floor / Flat Panel 3 Modes
Max Single Pass Height	3.0m
Max Ground Printing Width	Unlimited Splicable Guide Rails
Printing Speed	6-14 sqm/h Standard; Max 20 sqm Draft Mode
Main Unit Weight	62KG (Track Separately Packed)
Machine Size	1380330460mm
Control	WiFi Wireless + Wired Dual Control
Voltage	AC110V/220V 50/60Hz Global Wide Voltage
Rated Power	900W
RIP Software	Maintop, Photoprint, RIIN
File Format	JPG, PNG, PDF, TIFF, EPS, AI
Built-in Functions	5D Emboss, Power-failure Resume, Auto Clean, White Ink Stir, Ink Heating, Ground Track Adaptive
Curing Lamp	Dual Side Instant UV LED Curing
Warranty	12 Months Full Machine (Excluding Printhead & Ink Consumables)

Compatible Wall & Floor Printing Materials

Epoxy Floor
Cement Ground
Terrazzo
PVC Floor Mat
Wall Latex Paint
Brick Wall
Glass
Ceramic Tile
Wood Board
Metal Plate

Industry Application Scenarios

Private Parking Space Custom Print

Cartoon, portrait, text floor murals for residential underground parking lots, high single order profit.
Commercial Shop Ground Decoration

Café, clothing store, game hall entrance ground creative UV printing art.
Campus Culture Wall & Ground

School corridor wall and playground safety ground warning pattern printing.
Outdoor Factory Wall Graffiti

Enterprise culture wall, safety slogan weather-resistant outdoor murals.
Real Estate Sales Center Floor Art

Model room background wall and lobby ground decorative graphics.
Indoor Theme Restaurant Wall Mural

Immersive wall painting for catering, bar and entertainment venues.

Wall & Floor Real Print Samples

Anime Parking Floor Mural
Brick Wall Landscape Mural
Outdoor Wall Graffiti Art
3D Embossed Floor Graphics
Street Wall Abstract Art
Indoor Chinese Wall Decor
Custom Parking Floor Print
Exterior Building Wall

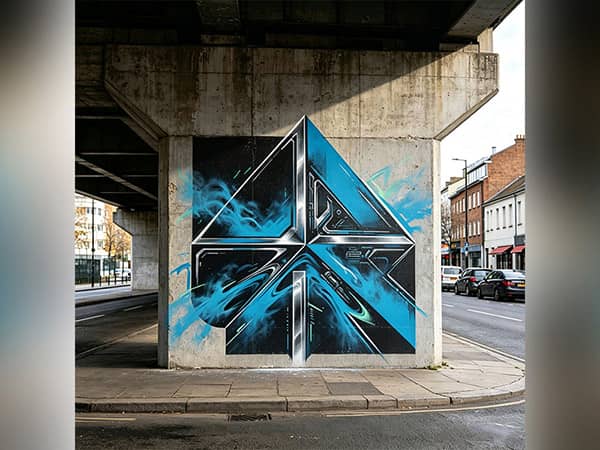

Pillar Large Format Print

Global Installation & Operation Training

Each WFP-UV207 machine is delivered with full English operation manual, ground track assembly tutorial, 5D emboss parameter guide and video teaching package. Free permanent one-on-one remote online training covering wall printing, ground track laying, floor gap adjustment, quick ink cartridge replacement and printhead daily maintenance. Bulk distributor orders can negotiate overseas on-site engineer training to master dual business construction quickly.

Warranty & Lifetime After-Sales Service

12-month full machine manufacturer warranty, printhead, UV ink, wiper and other consumables excluded. Lifetime free remote video troubleshooting, factory cost price supply of all spare parts, priority technical support for parking lot engineering customers.

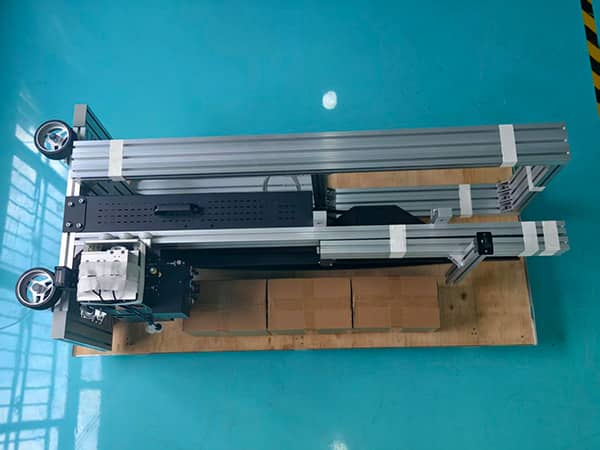

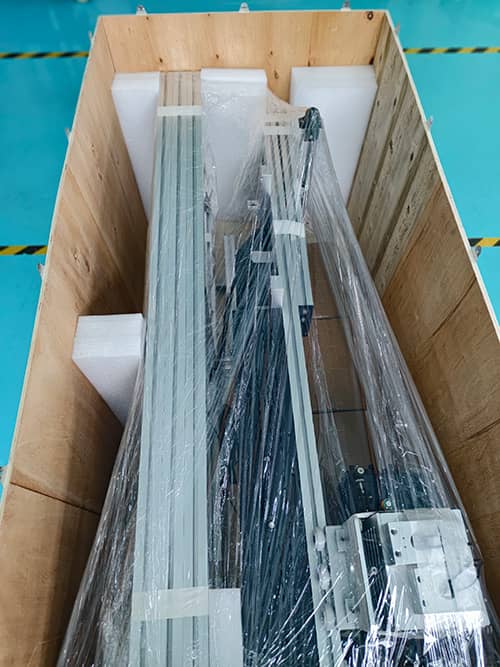

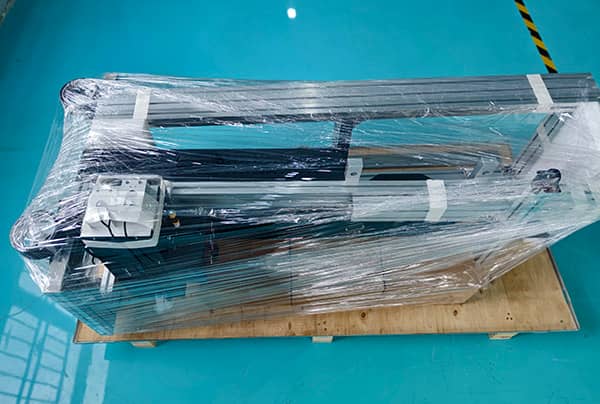

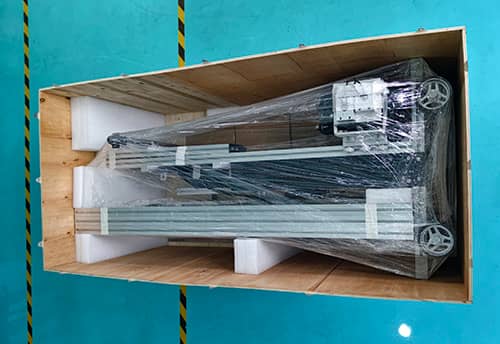

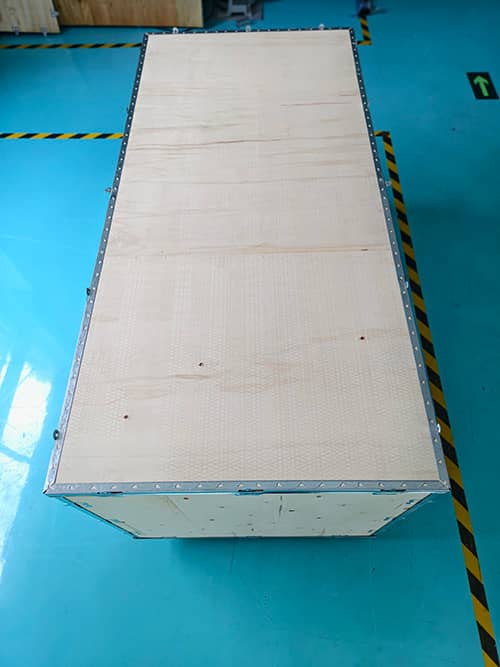

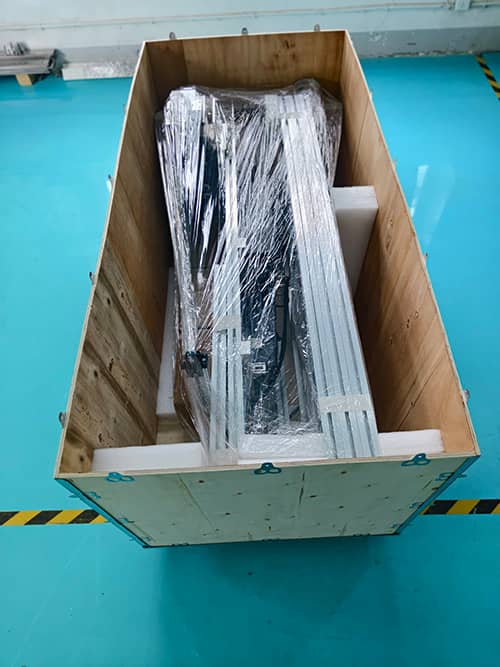

Export Shockproof Wooden Case Packaging

All machine host, ground track, ink system and accessories are separately packed into thick reinforced plywood export crates with multi-layer shockproof foam filling, avoid collision and vibration damage during long sea and air transport to global ports.

Frequently Asked Questions About WFP-UV207 Dual Printer

Can WFP-UV207 print on uneven cement parking ground?

Yes, the adaptive print gap system supports ground unevenness within 10mm. It is matched with a dedicated ground track to keep the machine stable without ink missing..

Is the floor UV pattern wear-resistant for long-term vehicle rolling?

With special floor UV ink, the cured pattern is scratch-resistant and wear-resistant. Under normal vehicle rolling, it can remain intact for 3-5 years without peeling.
